Panel to Light Steel Substrate |
||||
 |

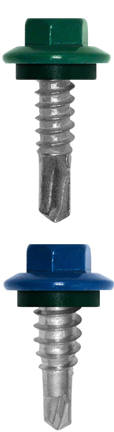

A 1.2 mil mechanical galvanized plated steel HWH self
drill-point, for secure fastening in steel substructure. A chisel point ,
provides quicker starts and eliminates slip damage. A 5/16" hex head with
a ozone resistant G-90/E.P.D.M. sealing washer allows easy installation
with maximum weather protection. Available in plain galvanized or head and
sealing washer in 16 painted colors.
|
|||
 |
 |
|||
| Drill point is designed to penetrate steel quickly with no "point walking". | Cupped HWH head design improves Pull over strength versus standard HWH & Bonded Washer. Sealtite sockets are designed to allow for the added thickness of the powder coat. | |||
|
Size |
Head Style | Carton Quantity | Weight / M | |
| #12-14 x 3/4" | 5/16 CHWH | 2,500 | 11.60 | |
| #12-14 x 1" | 5/16 CHWH | 2,500 | 13.96 | |
| #12-14 x 1 1/4" | 5/16 CHWH | 2,500 | 14.61 | |
| #12-14 x 1 1/2" | 5/16 CHWH | 1,500 | 16.62 | |
| #12-14 x 2" | 5/16 CHWH | 1,000 | 19.68 | |
| #12-14 x 2 1/2" | 5/16 CHWH | 2,500 | 22.82 | |
| #12-14 x 3" | 5/16 CHWH | 2,500 | 26.57 | |
|
